Products
Hot tanks · 0.8–100L
Our listed models — capacities from 0.8 to 100L and custom designs available on request.
Step-Heating Hot Tank
3–40L
PN 6000001486

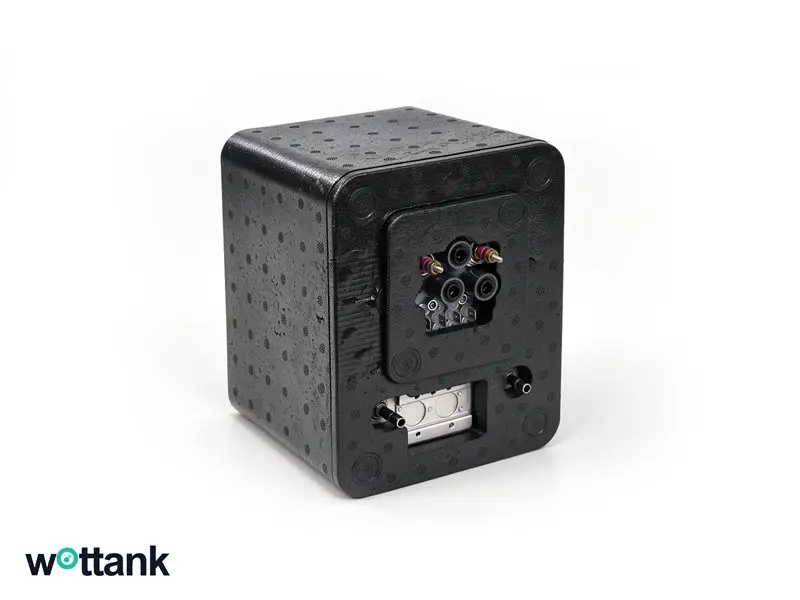

3L Step-Heating Hot Tank
Working modeStep heating
Outer dimensions (L×W×H)180 × 135 × 150 mm
Capacity3L
MaterialSUS304
Sheet thickness0.8 mm
Working temperature25 – 100 °C
Working pressure0 MPa
Applicable power500 – 1500 W
Air-tightness0.05 MPa
Hygiene standardHygiene safety evaluation norm for drinking-water distribution equipment & protective materials (China)
Over-temperature protectionSnap-action thermostat 102/108 °C
PN 6000001626

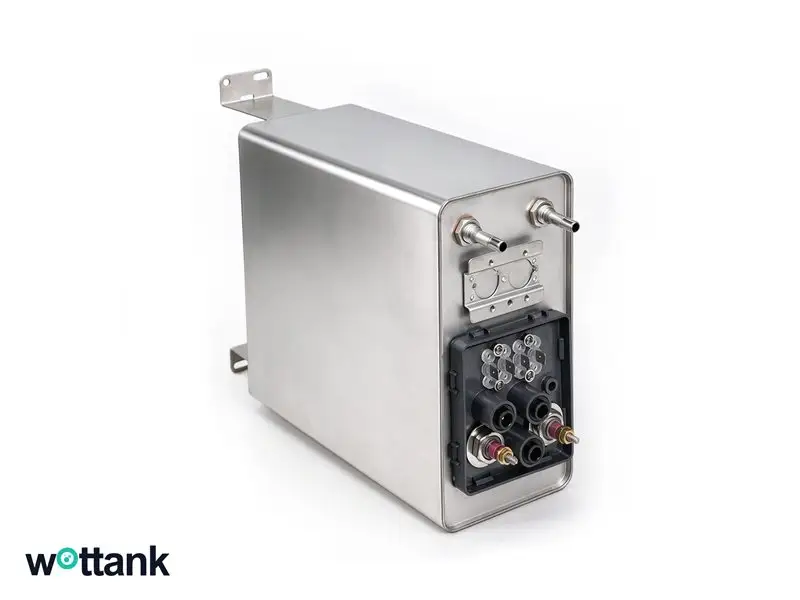

3L Step-Heating Hot Tank
Working modeStep heating
Outer dimensions (L×W×H)180 × 90 × 218.5 mm
Capacity3L
MaterialSUS304
Sheet thickness0.8 mm
Working temperature25 – 100 °C
Working pressure0 MPa
Applicable power500 – 1500 W
Air-tightness0.05 MPa
Hygiene standardHygiene safety evaluation norm for drinking-water distribution equipment & protective materials (China)
Over-temperature protectionSnap-action thermostat 102/108 °C
PN 6000000538

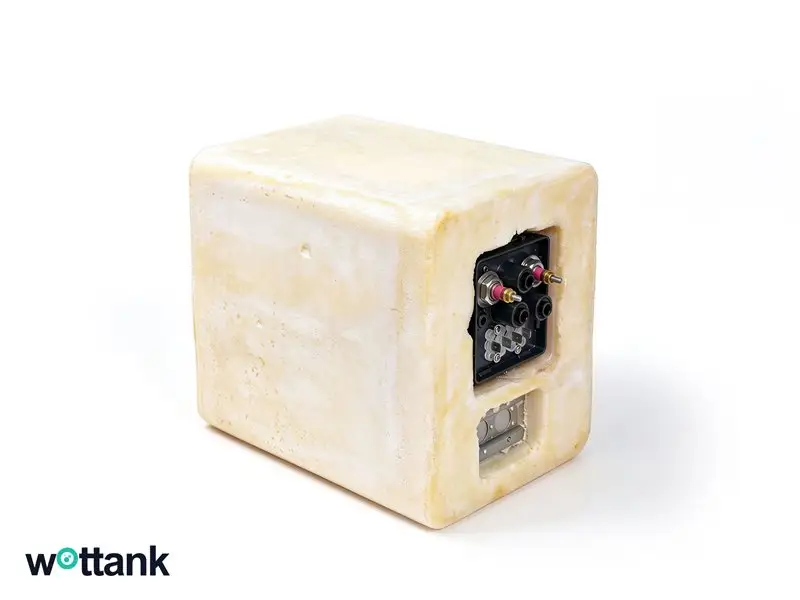

5L Step-Heating Hot Tank
Working modeStep heating
Outer dimensions (L×W×H)180 × 135 × 218.4 mm
Capacity5L
MaterialSUS304
Sheet thickness0.8 mm
Working temperature25 – 100 °C
Working pressure0 MPa
Applicable power500 – 1500 W
Air-tightness0.05 MPa
Hygiene standardHygiene safety evaluation norm for drinking-water distribution equipment & protective materials (China)
Over-temperature protectionSnap-action thermostat 102/108 °C
PN 6000000707

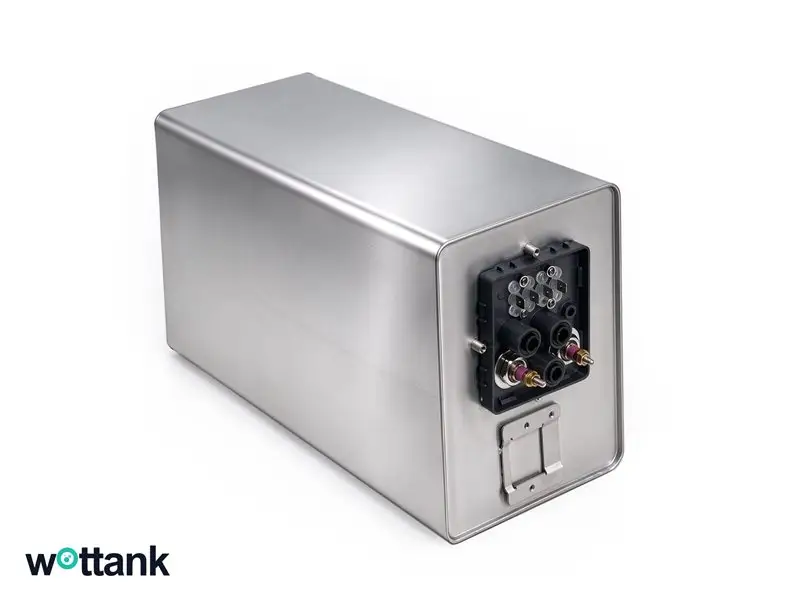

8L Step-Heating Hot Tank
Working modeStep heating
Outer dimensions (L×W×H)180 × 135 × 340 mm
Capacity8L
MaterialSUS304
Sheet thickness0.8 mm
Working temperature25 – 100 °C
Working pressure0 MPa
Applicable power1500 – 3000 W
Air-tightness0.05 MPa
Hygiene standardHygiene safety evaluation norm for drinking-water distribution equipment & protective materials (China)
Over-temperature protectionSnap-action thermostat 108 °C
PN 6000001435

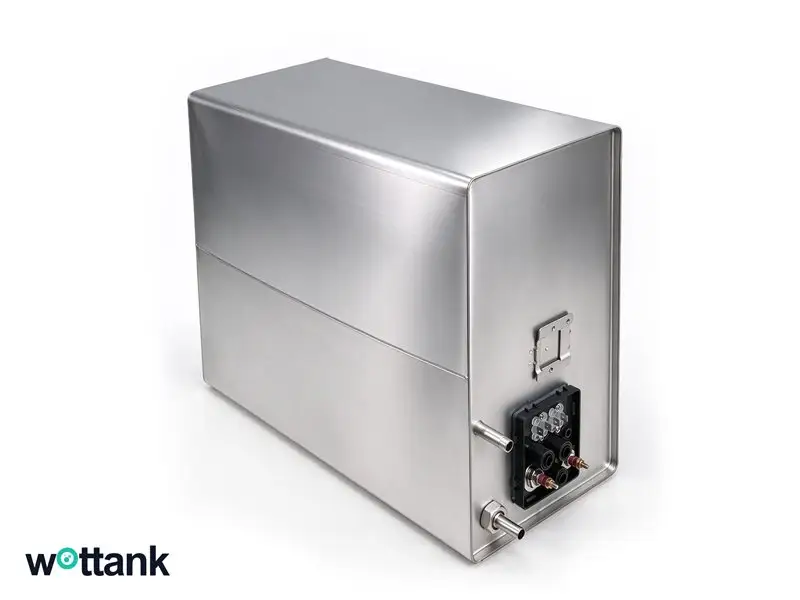

25L Step-Heating Hot Tank
Working modeStep heating
Outer dimensions (L×W×H)322 × 187 × 424.2 mm
Capacity25L
MaterialSUS304
Sheet thickness0.8 mm
Working temperature25 – 100 °C
Working pressure0 MPa
Applicable power2000 – 3000 W
Air-tightness0.05 MPa
Hygiene standardHygiene safety evaluation norm for drinking-water distribution equipment & protective materials (China)
Over-temperature protectionSnap-action thermostat 108 °C
PN 6000001544

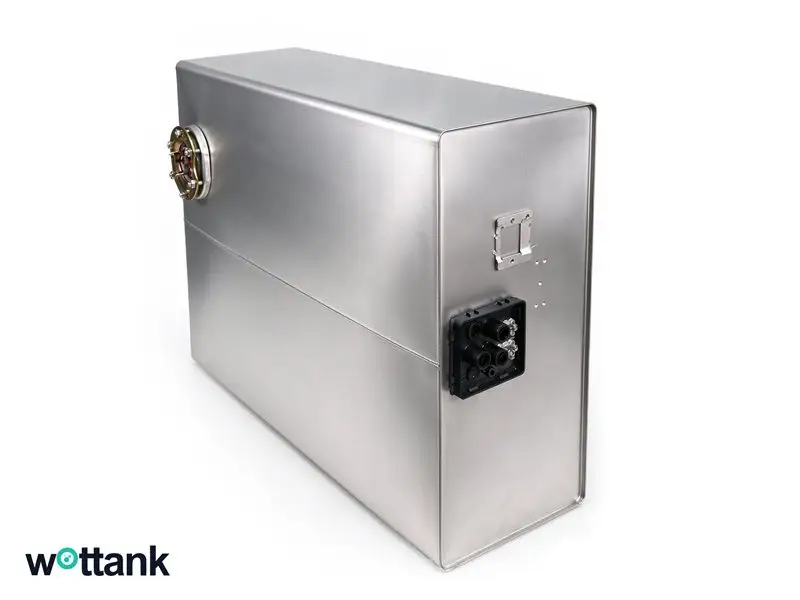

40L Step-Heating Hot Tank
Working modeStep heating
Outer dimensions (L×W×H)409 × 191.6 × 531 mm
Capacity40L
MaterialSUS304
Sheet thickness0.8 mm
Working temperature25 – 100 °C
Working pressure0 MPa
Applicable power2000 – 3000 W
Air-tightness0.05 MPa
Hygiene standardHygiene safety evaluation norm for drinking-water distribution equipment & protective materials (China)
Over-temperature protectionSnap-action thermostat 108 °C
Pressure Hot Tank
12–35L
PN 6000001657

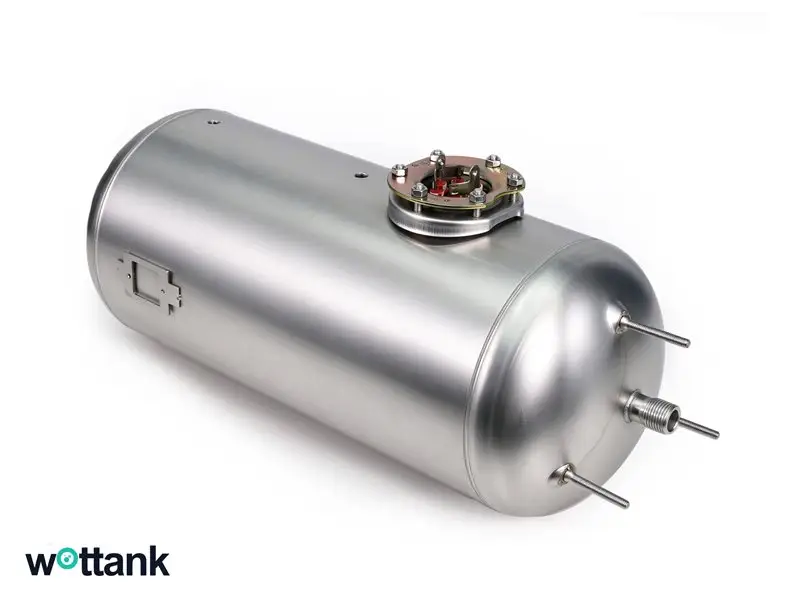

12L Pressure Hot Tank
Working modePressure heating
Outer dimensions (L×W×H)∅190 × 476.8 mm
Capacity12L
MaterialSUS304
Sheet thickness1 mm
Working temperature25 – 100 °C
Working pressure0 – 0.3 MPa
Applicable power2000 – 3000 W
Air-tightness0.6 MPa
Hygiene standardHygiene safety evaluation norm for drinking-water distribution equipment & protective materials (China)
Over-temperature protectionPressure thermostat 115 °C
PN 6000001662

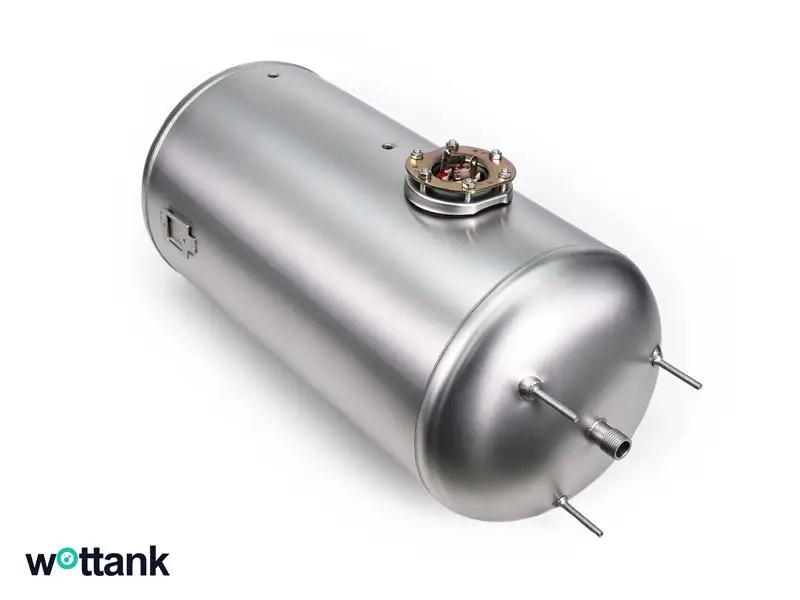

25L Pressure Hot Tank
Working modePressure heating
Outer dimensions (L×W×H)∅258 × 579 mm
Capacity25L
MaterialSUS304
Sheet thickness1 mm
Working temperature25 – 100 °C
Working pressure0 – 0.3 MPa
Applicable power2000 – 3000 W
Air-tightness0.6 MPa
Hygiene standardHygiene safety evaluation norm for drinking-water distribution equipment & protective materials (China)
Over-temperature protectionPressure thermostat 115 °C
PN 6000001659

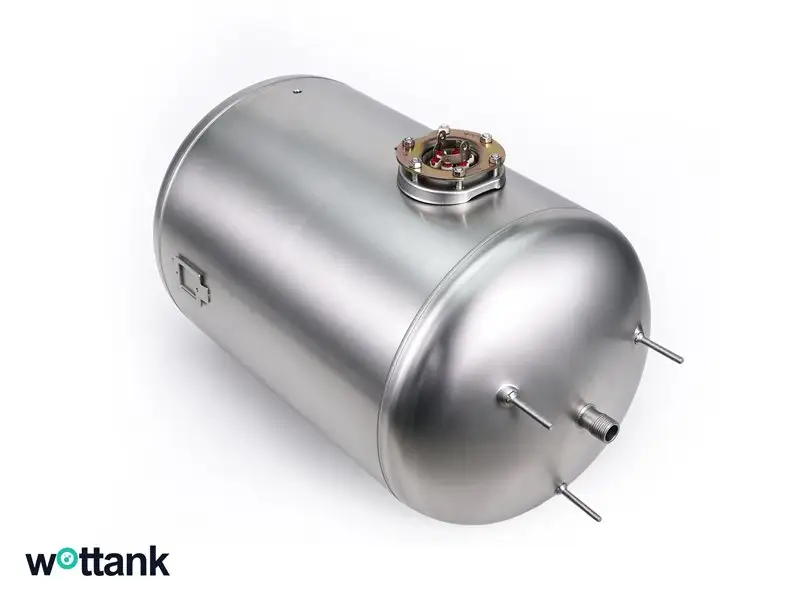

30L Pressure Hot Tank
Working modePressure heating
Outer dimensions (L×W×H)∅298 × 515 mm
Capacity30L
MaterialSUS304
Sheet thickness1 mm
Working temperature25 – 100 °C
Working pressure0 – 0.3 MPa
Applicable power2000 – 3000 W
Air-tightness0.6 MPa
Hygiene standardHygiene safety evaluation norm for drinking-water distribution equipment & protective materials (China)
Over-temperature protectionPressure thermostat 115 °C
PN 6000001661

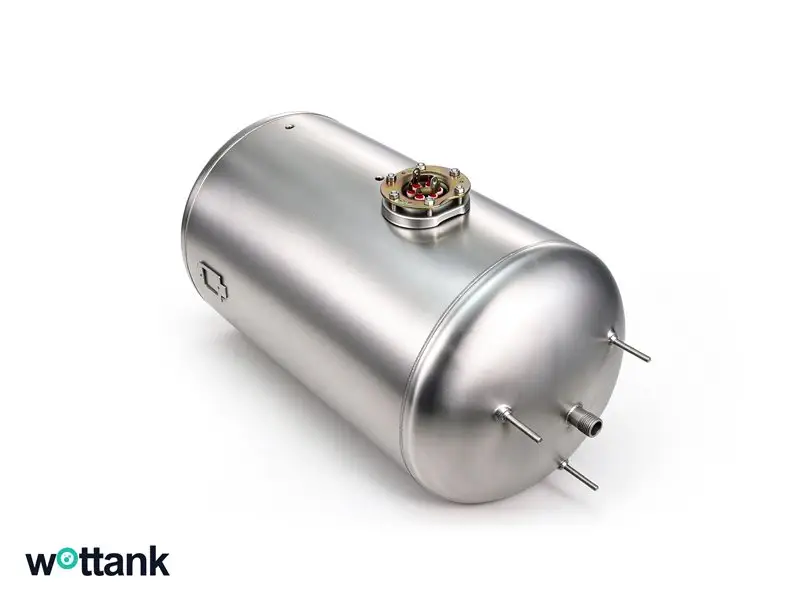

35L Pressure Hot Tank
Working modePressure heating
Outer dimensions (L×W×H)∅298 × 584.1 mm
Capacity35L
MaterialSUS304
Sheet thickness1 mm
Working temperature25 – 100 °C
Working pressure0 – 0.3 MPa
Applicable power2000 – 3000 W
Air-tightness0.6 MPa
Hygiene standardHygiene safety evaluation norm for drinking-water distribution equipment & protective materials (China)
Over-temperature protectionPressure thermostat 115 °C
